DESCRIPTION

Basic Info.

Model NO.	5x13
Standards	GB, Cema, DIN, JIS, Etcs
Seal	Double Labyrinth Seal
Color	Red, Blue, Yellow, Black, Ects
Life Time	More Than 50000 Hours
Guarantee	1 Year
Certification	ISO9001:2015 BV
Transport Package	Wooden Box
Specification	5"*11"
Trademark	Yilun
Origin	Shandong, China
HS Code	84313900
Production Capacity	720000PCS/Year

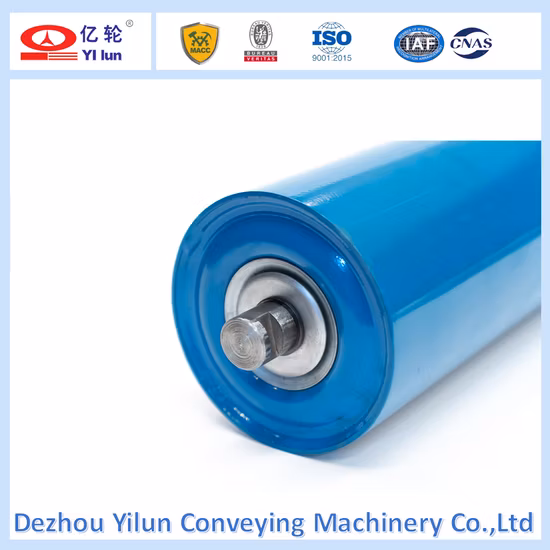

Product Description

Our conveyor roller can widely applied for mining, coal, metallurgy, electric power, sea port, grain, chemical and almost any industry which have conveying system. And we can produce any kinds roller, such as iron roller, impact roller, rubber lagging roller, and disc roller.What more, we have technical design team to design the new type products and best after-sale services.2.Brife introduction for Yilun Conveyor roller1.Material: Steel,rubber2.Bearing:6204,6205,6305,6306,6307,6308,6309,63103.Daimeter: Ø50-Ø2194.Lenght:120mm-2200mm5.Seal: double labyrinth seal5.Workign life:30000-50000hours6.Standards:GB,CEMA,JIS,DIN,AUSTRALIA7.Color: mulit-color for choice3.Advantages1).

Standard Diameter		Length scope ( mm)	Bearings Type (Min~Max)	Idler's Shell Wall Thickness
mm	Inch
63.5	2 1/2	150~3500	204	3.0mm~3.75mm
76	3	150~3500	204 205	3.0mm~4.0mm
89	3 1/3	150~3500	204 205	3.0mm~4.0mm
102	4	150~3500	204 205 305	3.5mm~4.0mm
108	4 1/4	150~3500	204 205 305 306	3.5mm~4.0mm
114	4 1/2	150~3500	205 206 305 306	3.5mm~4.5mm
127	5	150~3500	204 205 305 306	3.5mm~4.5mm
133	5 1/4	150~3500	205 206 207 305 306	3.5mm~4.5mm
140	5 1/2	150~3500	205 206 207 305 306	3.5mm~4.5mm
152	6	150~3500	205 206 207 305 306 307 308	4.0mm~4.5mm
159	6 1/4	150~3500	205 206 207 305 306 307 308	4.0mm~4.5mm
165	6 1/2	150~3500	207 305 306 307 308	4.5mm~6.0mm
177.8	7	150~3500	207 306 307 308 309	4.5mm~6.0mm
190.7	7 1/2	150~3500	207 306 307 308 309	4.5mm~6.0mm
194	7 5/8	150~3500	207 307 308 309 310	4.5mm~6.0mm
219	8 5/8	150~3500	308 309 310	4.5mm~6.0mm

2.)Main Feature

1) Solid design, suitable for heavy lifting.2) The bearing housing and steel tube are assembled and welded with a concentric automatic.3) Cutting of the steel tube and bearing is performed with the use of a digital auto device/machine/equipment.. 4) The bearing end is constructed to ensure that the roller shaft and bearing can be firmly connected.5) Fabrication of the roller is effected by an auto device and 100% tested for its concentricity. 6) Roller and supporting components/materials are manufactured to DIN/ AFNOR/ FEM/ ASTM/ CEMA standard.7) The casing is manufactured with highly composite, anti corrosive alloy.8) The roller is lubricated and free from maintenance.9) Woring life expectancy is up to 30,000 hours or more, depending on usage.10)Vacuum sealed which has withstood anti water, salt, snuff, sandstone and dust proof experiment The pipe we choose is the high quality welding pipe,the roundness is The shaft we choose is high-precsion rond cold steel,the roundness is lower 0.6mm,the straightnesss is 0.15%, the wall thickness tolerance 0.8, and the tolerance is only ±0.0065mm, make sure the bearing and is ±0.1mm, the thickness from 2.5~6.0mm, diaeter is from 50~219mm. shaft match closely, the bearing move safely.0.8,±0.1mm, the thickness from 2.5~6.0mm, diaeter is from 50~219mm. The pipe is rust removal to increase paint adhesion.
Bearing housing is punched by the superipr steel sheet(SPHC), This bearing is the joint ventures, it is the roller special double After that, we will use the housing circle machine to cut the outside seal, the bearing inner race have V-groove, grease is also the of the housing, to make sure the high Concentricity of the roller and imported grease (Inject the grease into the both sides of the ball the small runout. bearing).This seal is the national standard double labyrinth seal, 4 pieces We can print the brand for the customer requests, but need the pom and 3 pieces stell seal.Injected the high quality No.2 lithium customer give us the authorization.grease. it is water proof and dustproof,anti-corrosion,wear-resisting,ect...
4.Technical quality team

4.Packing & Shippingwe can provide different kinds of packing for the customer.Wooden box and wooden pallet packing for your choice.5.Certificate6.Customer visiting and the exhibitions7.After sale service
We provide the customer best after sale services, and we solve the problems any time.8.Company introduction 1.)Dezhou Yilun conveying Machinery Co.,Ltd was founded in 2005. 2.)It's registered capital is 11.68million CNY and It is private joint-stock enterprise. Our main products are cnoveyor roller,idler,frame, pulley,belt and belt conveyor system for TD75 ,DTII,DTIIA,CEMA ects.3.)we has large lathes, numerical control, double pressing machine, double welding machine, double boring lathe, milling machine, sawing machine and so on. The products have gained various patents. We can produce more than one thousand rollers and ten pulleys per day.4.)We have the professionalQC dept. to keep the good quality before the goods sent out. The products are sold to Middle East,Africa ,Australia,Europe,Southeast Asia,Russia and some other countries and regions. We will Strengthen the inner management and improve our products' quality constantly. We will offer the best products for customers from the beginning to the end.

9.FAQ
1
Q: Your bearing type and brand usually use?
A:Large clearance C3 ZZ type deep ball bearing withSRB, and according to customer's requirements.
2
Q: How is your Payment Term?
A: T/T or L/C. Another payment term we can also discuss.
3
Q: Can you customize it? A: We support customization according to your request. 4
Q: What's the MOQ? A: 50 piece. 5
Q: What's the production capacity of your conveyor roller? 1500 pcs/day.

6
Q: What's your roller's lifetime?
Our rollers have a long lifetime with good performance and usuallymake sure 30000 to 50000 hours under the normal site and operation.

About roller,we can make gravity conveyor roller,steel conveyor roller,driving roller,light middle duty conveyor roller,o-belt tapered sleeve roller,gravity tapered roller,polymer sprocket roller and so on.More details,please contact us.
